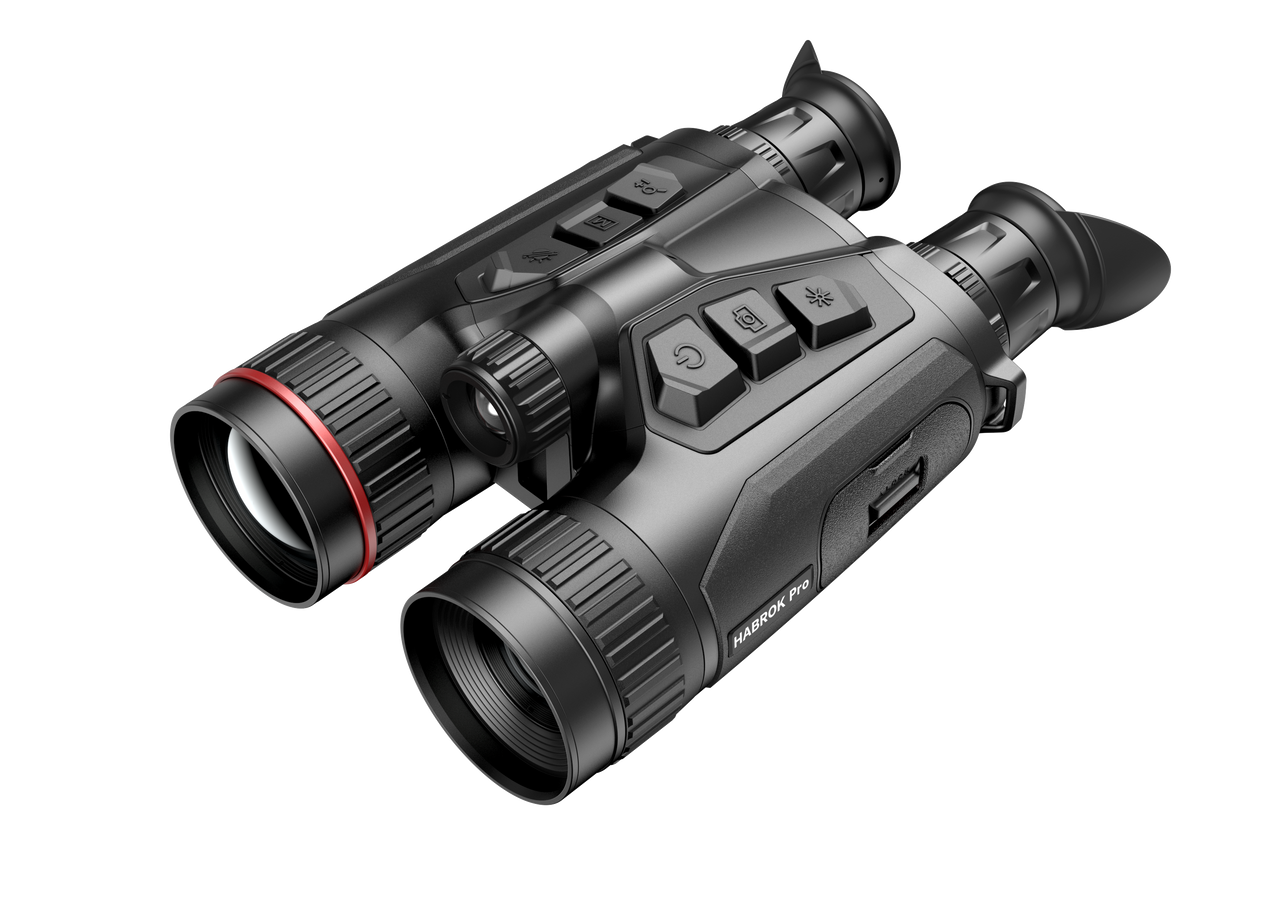

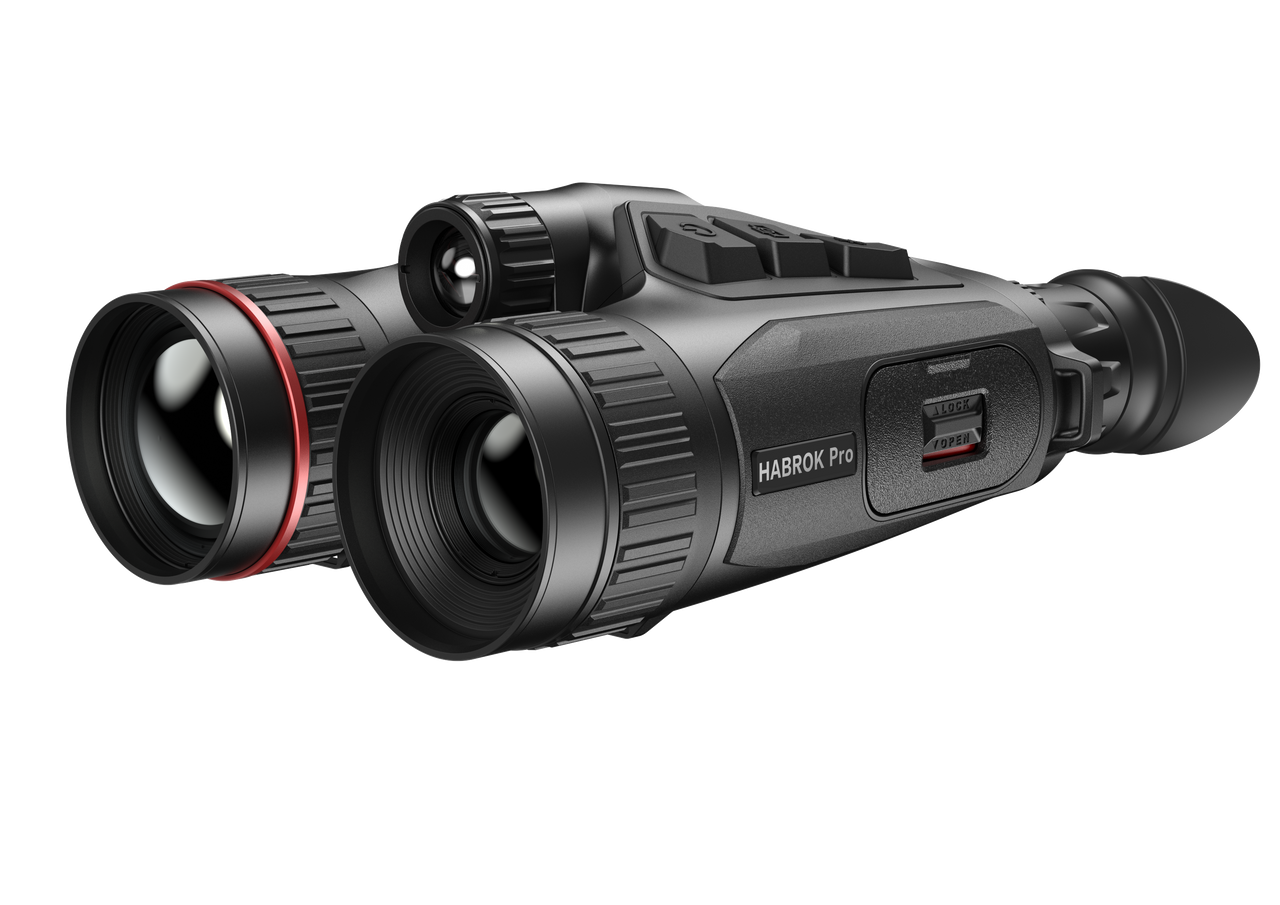

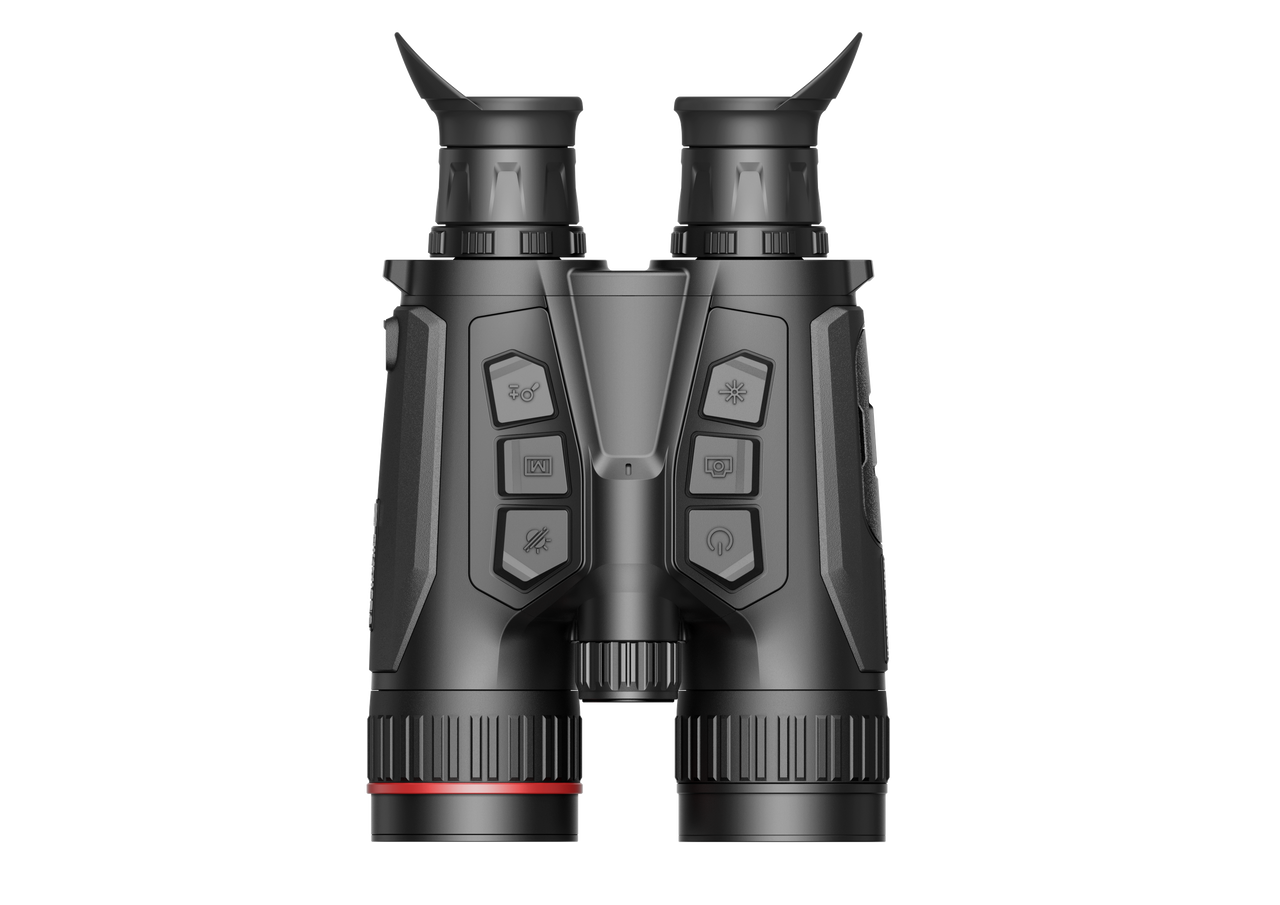

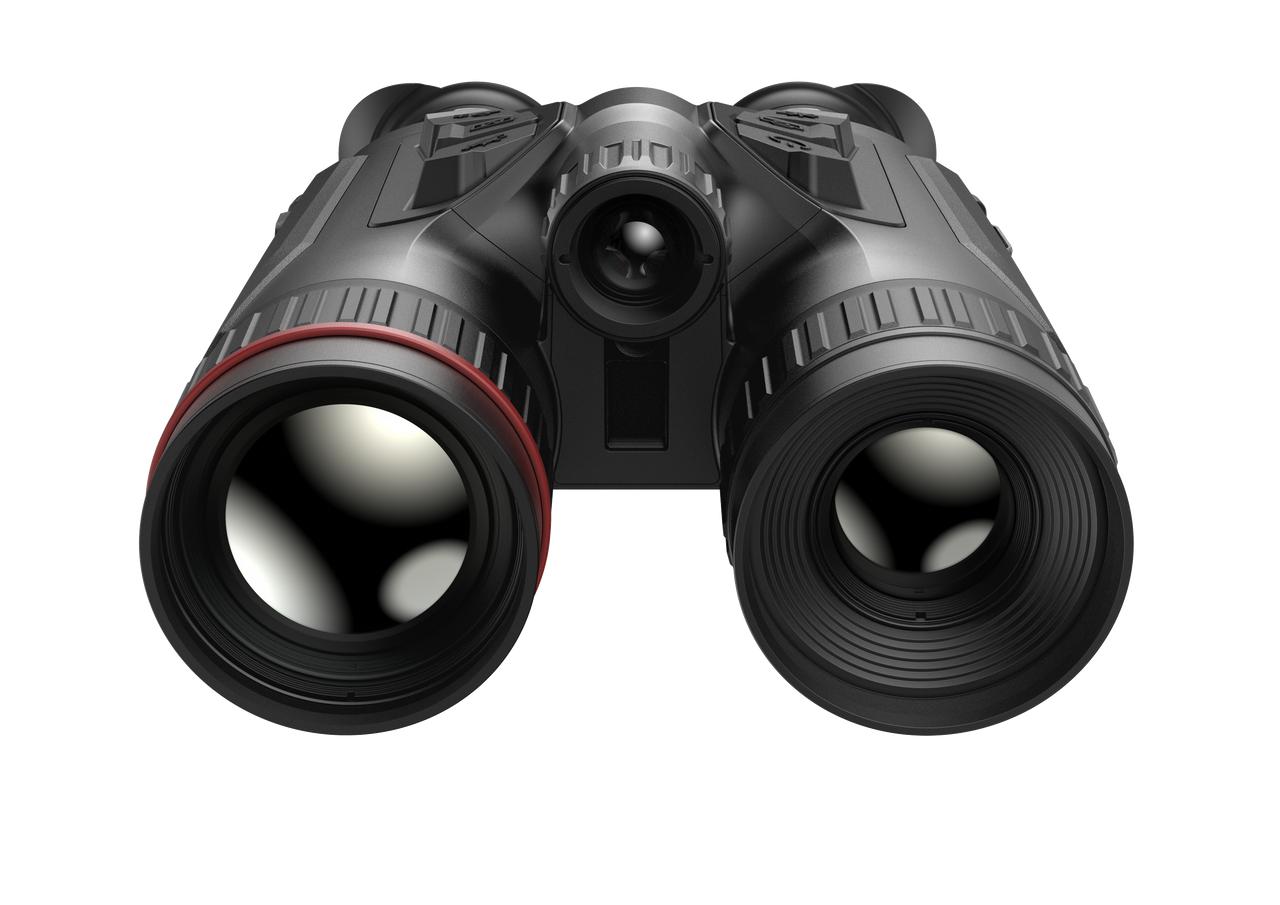

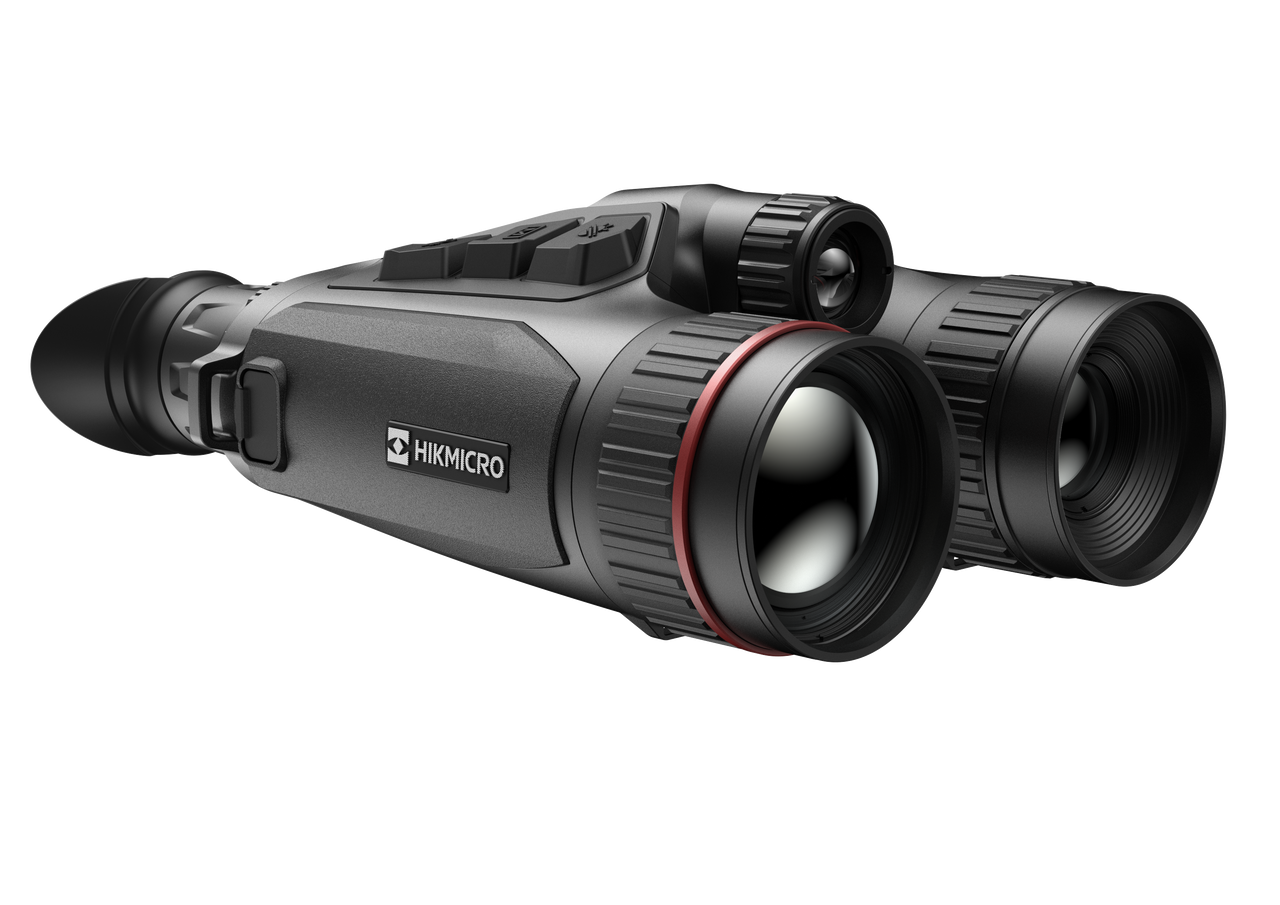

HIKMICRO Habrok Pro HQ50L(N) Multi-Spectrum Binocular
The HIKMICRO Habrok Pro HQ50L(N) is a multi-spectrum binocular built for hunters, pest controllers and property owners who need thermal detection, 4K day and night optics and laser ranging in the one unit. It suits paddock work, spotlighting feral animals in the bush, birdwatching and search and rescue tasks where you need to identify a target and then range it without swapping devices. The binocular pairs a dedicated thermal channel with a separate digital day/night channel, so you get detection and identification in a single glass-to-eye view.
High-Resolution Thermal Detection:
the thermal module uses a VOx uncooled focal plane array with 640 × 512 max resolution, 50 Hz frame rate, 12 μm pixel pitch and a response waveband of 8 μm to 14 μm, with NETD of less than 15 mK (@25°C, F#=1.0) through a 50 mm, F1.0 lens
.
This gives a thermal detection range of 2,600 m
, and
thermal magnification runs from 4.3x to 25.8x with 6x digital zoom, minimum focusing distance of 5 m, and a field of view of 8.8° × 5.3° (15.4 m × 9.3 m @ 100 m)
. In practice this means you can pick out a fox or feral pig against a cold paddock background well before it is visible to the naked eye, even in rain or fog.
4K Day and Night Clarity: alongside the thermal channel sits
a 1.88" progressive scan CMOS optical module with 3840 × 2160 (4K) max resolution through a 60 mm, F2.2 lens
, and
optical magnification runs from 5.5x to 22.0x (4x digital zoom) with a field of view of 7.3° × 4.1° (12.6 m × 7.2 m @ 100 m)
.
A built-in 850 nm IR illuminator with smart IR and a replaceable IR module extends viewing range at night to 400 m
. This lets you switch from full-colour daylight glassing to a clear black-and-white night view at the touch of a button, without losing detail in low light.
Precise Laser Ranging:
a Class 1, 905 nm laser rangefinder measures out to 1,000 m with an accuracy of ±1 m, down to a minimum range of 10 m
. That accuracy matters when you are working out a safe and ethical shot distance on a feral animal, or judging distance across water or open ground from a boat or vehicle.
Built for a Full Day in the Field:
the housing carries an IP67 protection rating and is rated to work from -30°C to +55°C
, so dust, rain and heavy dew are not a concern.
The replaceable and rechargeable li-ion battery pack delivers 7 hours or more of operating time (-20°C, hotspot off, with LRF and Zoom Pro running), charged via a 5V DC, 2A Type-C connection and with support for external power
, and
two batteries are included in the box for reliable all-day performance in remote environments
.
Recording and Connectivity for Field Use:
the binocular has 64 GB of built-in eMMC storage
, and
features picture-in-picture, hotspot tracking, hot track, a digital magnetic compass and GPS
.
The 4K sensor doubles as a digital night vision module, giving high-quality black-and-white images at night while the thermal sensor handles fast detection and tracking
, with footage and stills shareable to your phone through the HIKMICRO Sight app over Wi-Fi.
What's Included
- HIKMICRO Habrok Pro HQ50L(N) multi-spectrum binocular
- 2 x rechargeable lithium-ion battery packs
- USB Type-C charging cable
- Binocular carry harness
- Carry case
- Cleaning cloth
- Quick start guide
| Specification |
Details |
| Model |
HIKMICRO Habrok Pro HQ50L(N) |
| Thermal Image Sensor |
VOx Uncooled Focal Plane Array |
| Thermal Max Resolution |
640 × 512 |
| Thermal Frame Rate |
50 Hz |
| Thermal Pixel Pitch |
12 μm |
| Thermal Response Waveband |
8 μm to 14 μm |
| Thermal NETD |
<15 mK (@25°C, F#=1.0) |
| Thermal Lens |
50 mm, F1.0 |
| Thermal Detection Range |
2,600 m |
| Thermal Min. Focusing Distance |
5 m |
| Thermal Magnification |
4.3x–25.8x (6x digital zoom) |
| Thermal Field of View (H × V) |
8.8° × 5.3° / 15.4 m × 9.3 m @ 100 m |
| Optical Image Sensor |
1.88" Progressive Scan CMOS |
| Optical Max Resolution |
3840 × 2160 (4K UHD) |
| Optical Lens |
60 mm, F2.2 |
| Optical Min. Working Distance |
3 m |
| Optical Magnification |
5.5x–22.0x (4x digital zoom) |
| Optical Field of View (H × V) |
7.3° × 4.1° / 12.6 m × 7.2 m @ 100 m |
| IR Illuminator |
850 nm, replaceable, up to 400 m viewing range |
| Laser Rangefinder Safety Class |
Class 1 |
| Laser Rangefinder Wavelength |
905 nm |
| Laser Rangefinder Max. Range |
1,000 m |
| Laser Rangefinder Accuracy |
±1 m |
| Laser Rangefinder Min. Range |
10 m |
| Display |
0.49" OLED, 1920 × 1080 |
| Storage |
Built-in eMMC, 64 GB |
| Connectivity |
Wi-Fi, USB Type-C, HIKMICRO Sight app, GPS, digital compass |
| Battery Type |
Replaceable, rechargeable Li-ion battery pack |
| Battery Operating Time |
≥7 h (-20°C, hotspot off, LRF and Zoom Pro on) |
| Power Input |
Type-C, 5V DC, 2A; external power supported |
| Protection Level |
IP67 |
| Working Temperature |
-30°C to +55°C |
| Dimensions |
142.9 mm × 79.7 mm × 230.5 mm |
| Weight |
975 g (with battery pack) |
| Mounting Thread |
1/4"-20-UNC |
