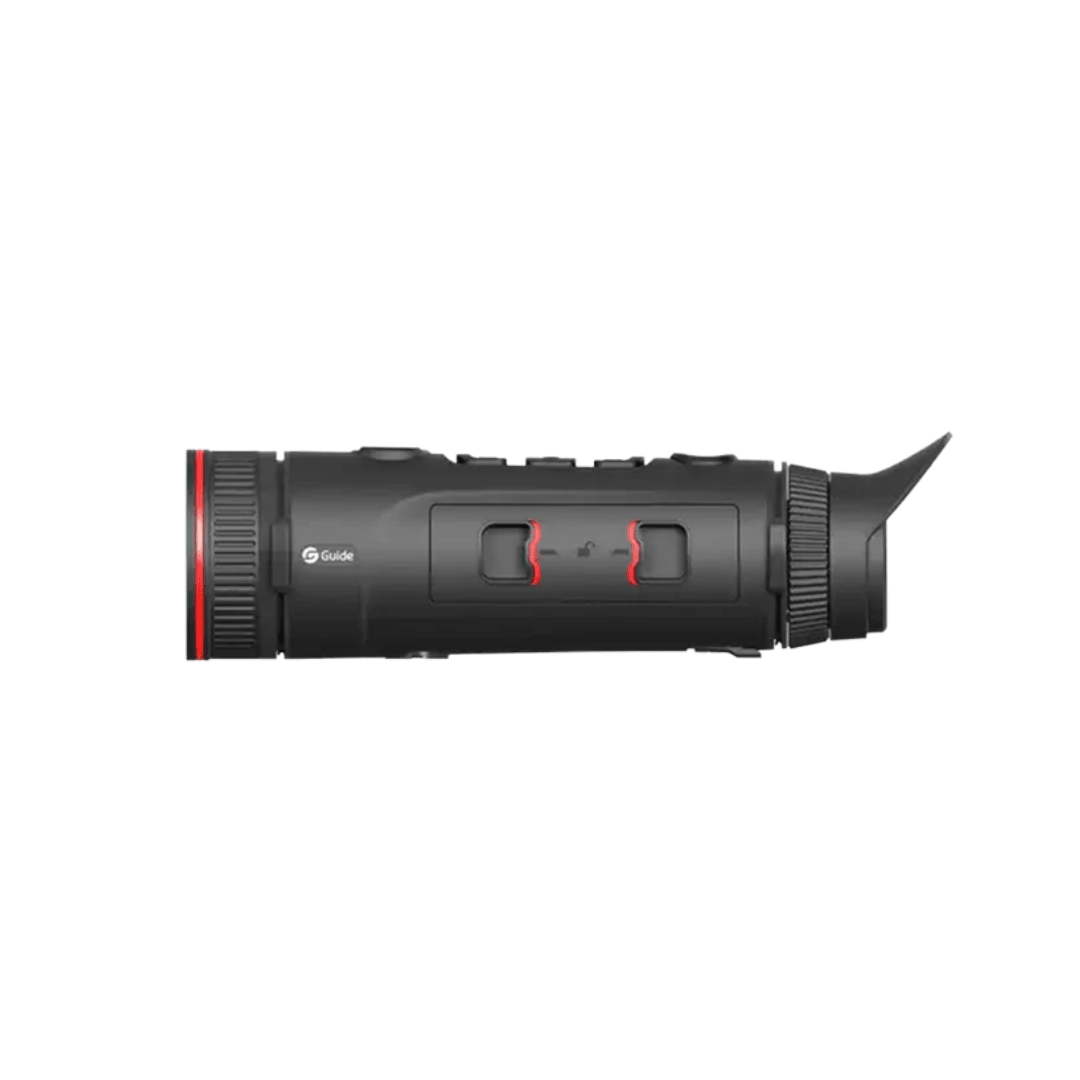

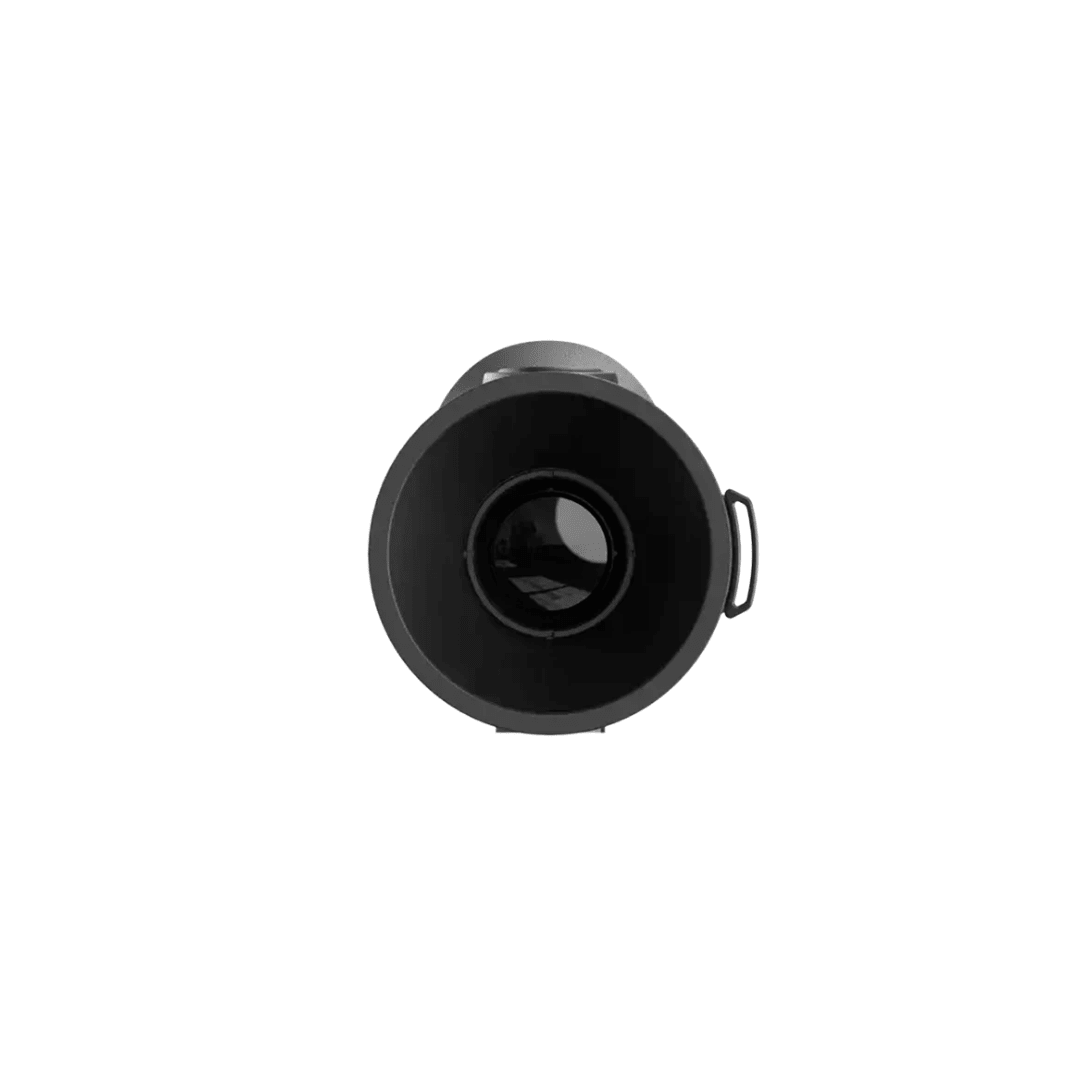

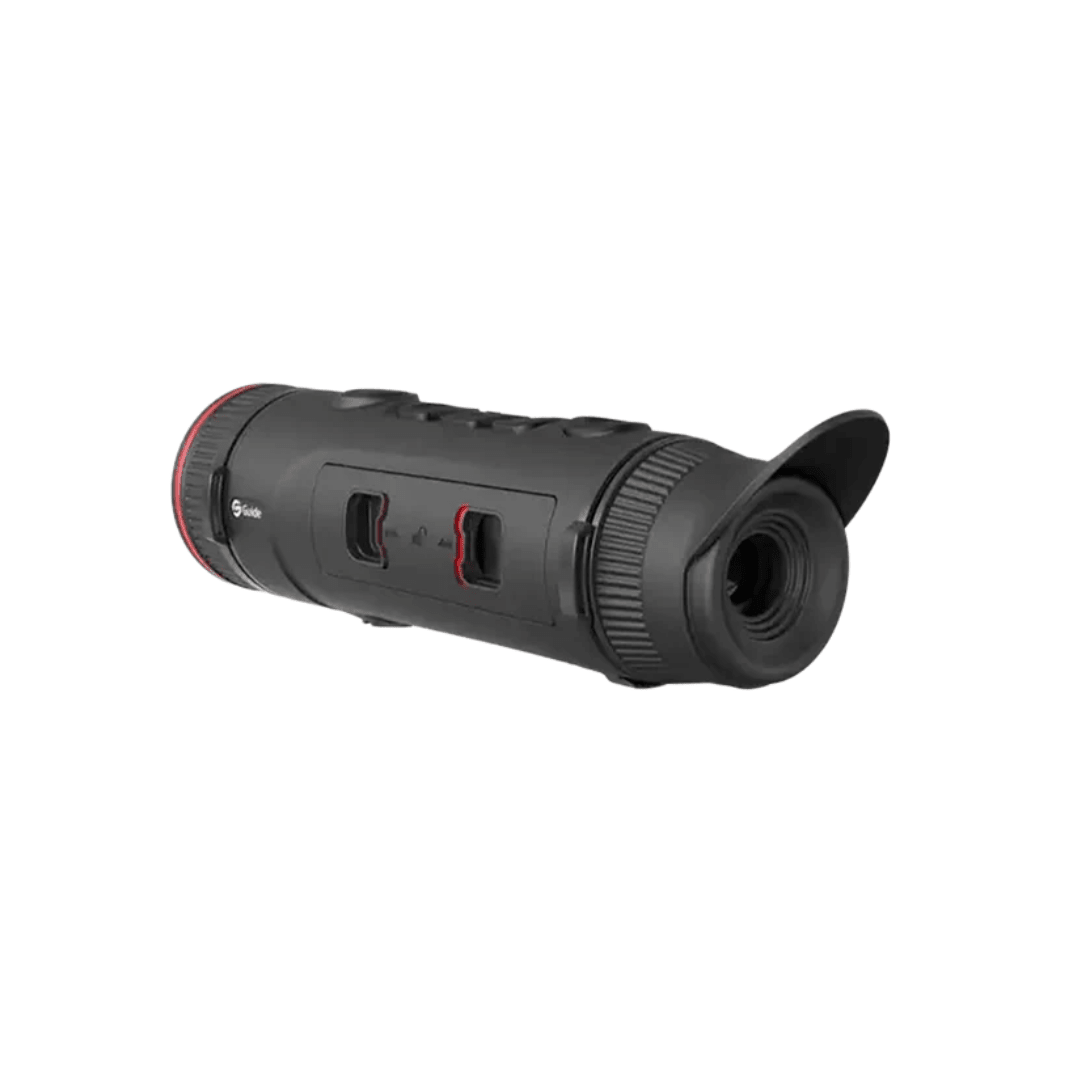

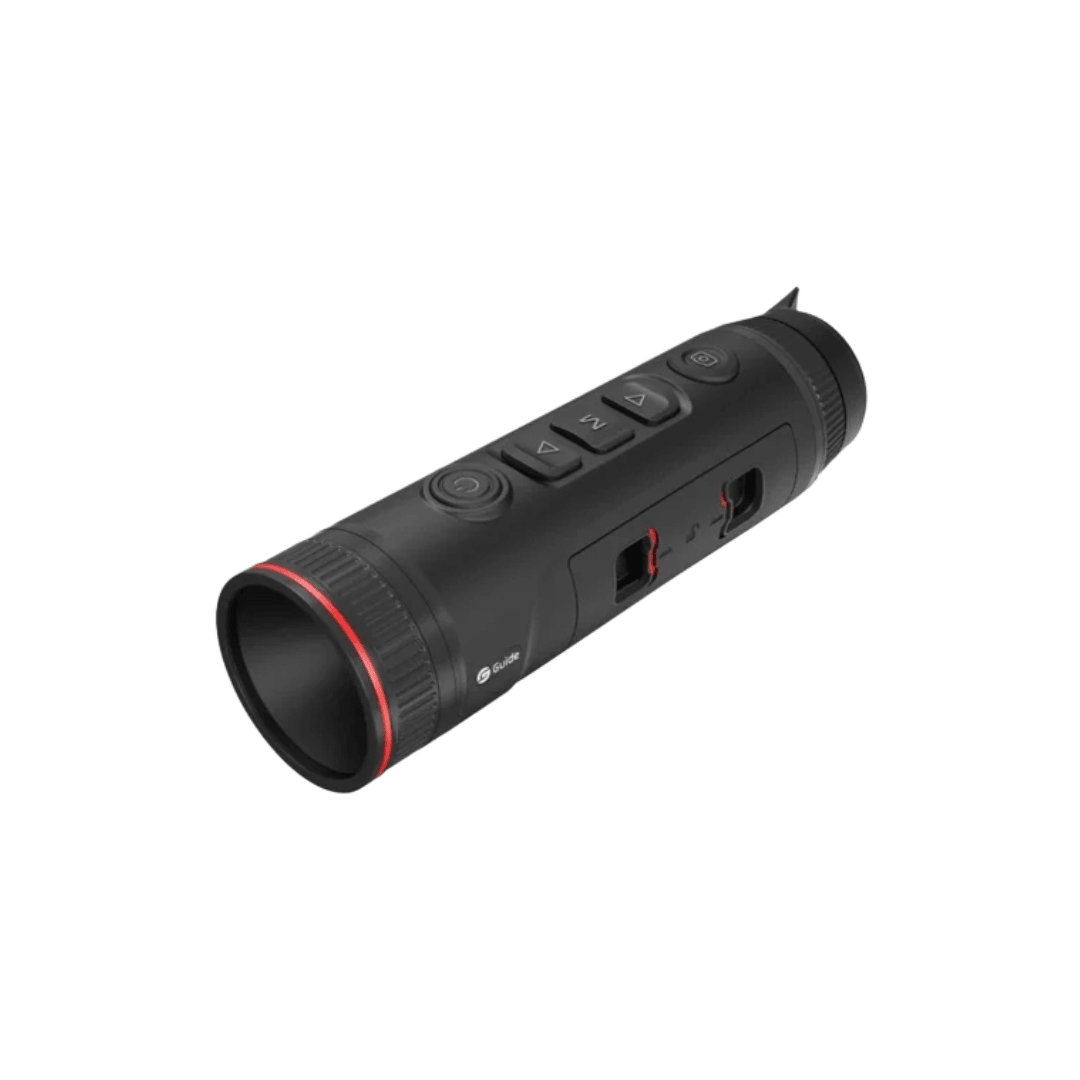

Guide TJ420 Thermal Monocular
The Guide TJ420 Thermal Monocular is a handheld thermal imager built for hunters, pest controllers and property owners who need to see clearly after dark without carrying a full rifle-mounted setup. It pairs a 400×300 thermal sensor with a 25mm lens and a Full HD AMOLED display, and adds photo and video recording, Wi-Fi streaming and IP67 sealing for use in the paddock or the bush. It is light enough to carry all night and tough enough to leave in the ute.
Clear Thermal Detail in Low Light:
The 400×300@12μm VOx detector delivers a NETD of 25mK at a 50Hz frame rate
, which means it picks up the subtle heat difference between a feral animal and the surrounding paddock, scrub or water, even on a still, cold night when contrast is hardest to find.
Long-Range Spotting:
The 25mm F1.0 objective lens gives an 11°×8.2° field of view, a 19×14m field of view at 100m, and 3.04x to 12.16x magnification
, with
a detection range of 1,300m
. That is enough reach to scan a fence line or a dam from one spot before deciding whether it is worth moving closer.
Full HD AMOLED Viewing:
The 0.39-inch AMOLED display runs at 1920×1080 resolution, with seven colour palettes including White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot and Sepia
, and
an eyepiece with 16mm eye relief, ±6 diopter adjustment and 18x eyepiece zoom
. You can switch palettes on the fly depending on whether you are tracking a pig through grass or checking a waterline for movement.
Recording and Connectivity:
Photo and video recording with audio is stored on 32GB of internal memory, and the unit connects over 2.4G and 5G Wi-Fi with a USB-C interface, plus a built-in microphone, compass, gyroscope and Bluetooth
. That lets you pull footage straight off the device or stream to a phone without plugging in a cable in the dark.
All-Night Runtime and Weatherproofing:
Two replaceable 18650 batteries give 12 hours of operating time, and the unit is rated to an operating temperature of -20°C to 50°C with IP67 encapsulation
. Carrying a spare set of 18650 cells means you are never stuck mid-shift with a flat monocular, and the sealing shrugs off rain, dust and a dunking in a puddle.
What's Included
- Guide TJ420 Thermal Monocular
- Wrist strap
- Battery charger
- 2 x 18650 batteries
- 5V2A power adapter
- USB Type-C cable
- Quick start guide
- Warranty card
| Specification |
Details |
| Model |
Guide TJ420 |
| Detector Type |
Uncooled VOx Infrared Detector, 8 to 14μm |
| Detector Resolution |
400×300 @ 12μm |
| Thermal Sensitivity (NETD) |
25mK |
| Frame Rate |
50Hz |
| Objective Lens |
25mm, F1.0 |
| Field of View |
11.0°×8.2° |
| Field of View at 100m |
19 × 14m |
| Magnification |
3.04x – 12.16x |
| Detection Range |
1,300m |
| Display Type |
0.39'' AMOLED, 1920×1080 |
| Colour Palettes |
White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia |
| Eye Relief |
16mm |
| Diopter Adjustment |
±6 |
| Eyepiece Zoom |
18x |
| Recording |
Photo/Video with audio |
| Internal Storage |
32GB |
| Wi-Fi |
2.4G, 5G |
| Interface |
USB Type-C (Power / USB 2.0) |
| Other Sensors |
Microphone, Compass, Gyroscope, Bluetooth |
| Battery Type |
2 x replaceable 18650 batteries |
| Operating Time |
12 hours |
| Operating Temperature |
-20°C to 50°C |
| Ingress Protection |
IP67 |
| Weight |
479g |
| Dimensions |
234 × 66 × 66mm |
