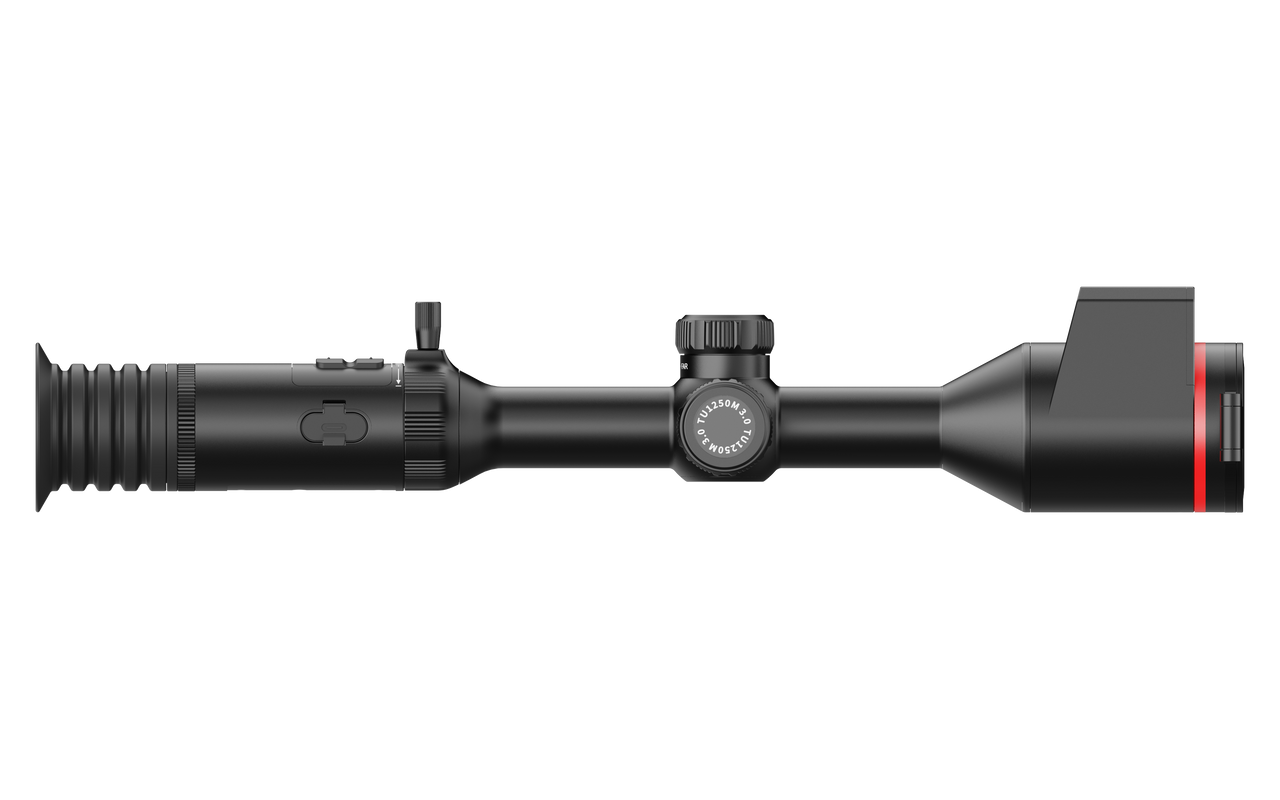

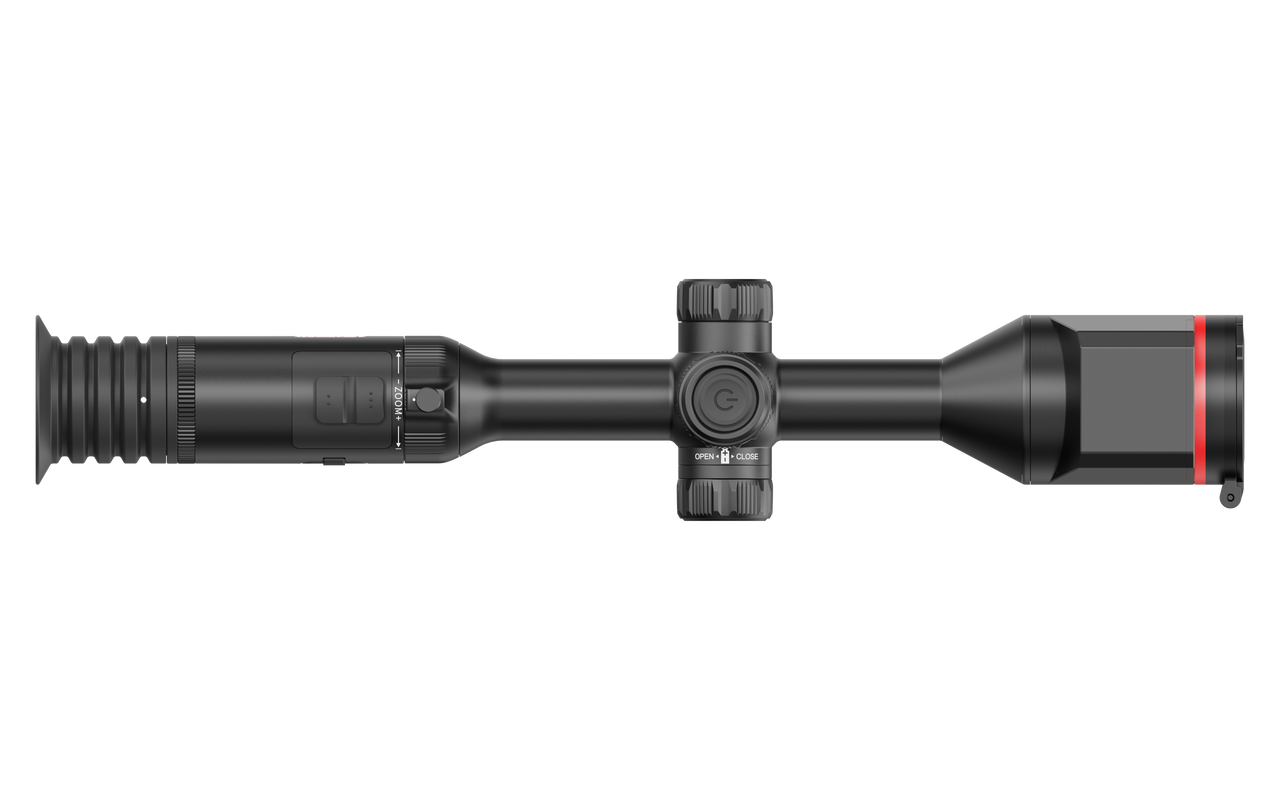

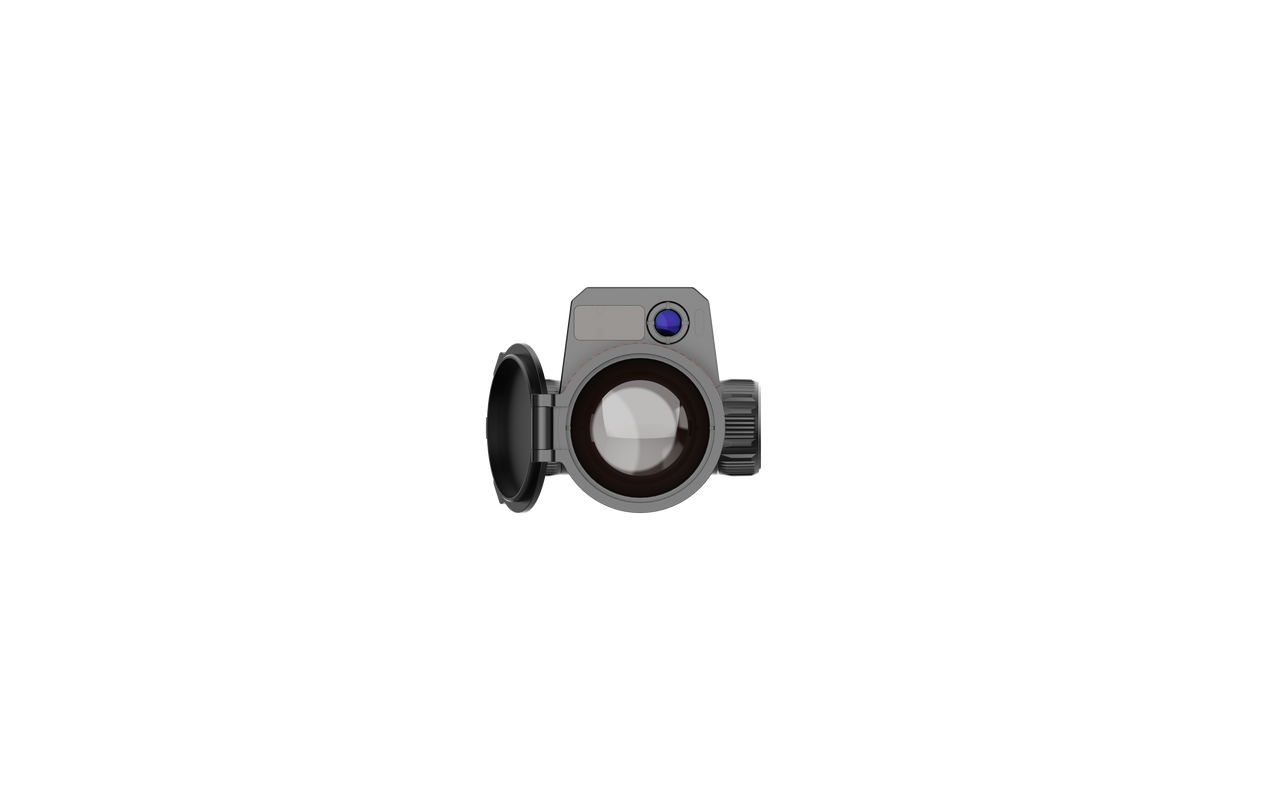

Guide TU650M 3.0 Thermal Scope
The Guide TU650M 3.0 is a multispectral thermal riflescope built for hunters and professional pest controllers who need both thermal detection and digital night vision in the one unit.
It pairs a 640 × 512 thermal sensor with an integrated 1080p digital night vision channel — thermal imaging, night vision, and daytime optics in a single 30mm-tube scope.
A built-in laser rangefinder and recoil-activated recording make it a practical choice for serious fox, pig and deer work across the paddock or bush.
High-Resolution Thermal Imaging:
The thermal channel uses an uncooled VOx infrared detector running at 640×512@12μm with NETD of 18mK
, alongside
a separate 1920×1080@2.9μm digital CMOS channel, both running at a 50Hz frame rate
. This gives you clean heat-signature detail in full darkness as well as a true colour digital view for daylight glassing, with the ability to switch between the two or use picture-in-picture to combine them.
Long-Range Target Identification:
Thermal detection range is rated to 2600m (2800yd), with the digital channel reaching 500m (550yd)
, and
magnification runs from 3.7x out to 29.6x on both channels
.
The built-in laser rangefinder provides accurate ranging out to 1500m
, so you can confirm distance before committing to a shot rather than estimating it.
Clear, Low-Strain Viewing:
The display is a 1.03-inch AMOLED panel at 2560×2560 resolution
, paired with
60mm eye relief and AI-enhanced imaging, which keeps visuals crisp while reducing eye strain over long sessions
.
The objective lens runs 3.7x to 29.6x on the thermal channel and the same range on digital, mounted in a standard 30mm tube
that suits common quick-release mounting systems.
Extended Runtime in the Field:
Two built-in batteries and an external battery system offer strong power backup for extended hunting sessions of up to 14 hours, and the replaceable standard 18650 batteries support hot swapping for effectively unlimited runtime
once you are carrying spares.
Charging and data transfer run through USB-C
, and the scope adds
2.4G and 5G Wi-Fi plus Bluetooth connectivity
for linking to a companion app.
Rugged, Weatherproof Construction:
The housing is IP68-rated and shock-resistant to 6000J/1200G
, with
an operating range of -20°C to 50°C
so it handles frosty mornings and hot paddock work without drama.
Recording runs to photo and video with audio, backed by 256GB of onboard storage
, and
recoil-activated recording automatically captures a 15-second video and five photos of each shot, with instant playback
.

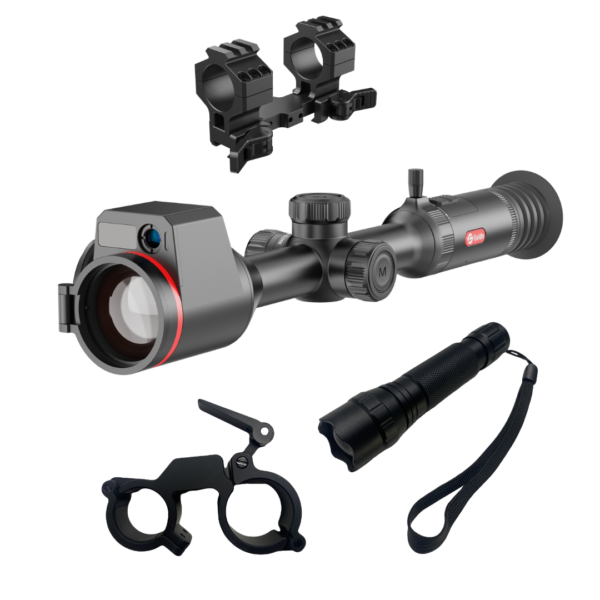

What's Included
- Guide TU650M 3.0 Thermal Scope
- Quick-release scope mount
- IR torch and 30mm bracket
- Lens cap
- Eyecup
- Carrying bag
- 18650 batteries x2
- USB-A to USB-C cable
- 5V/2A charger adapter
- Quick start guide
| Specification |
Details |
| Model |
Guide TU650M 3.0 (TU MUO 3.0) |
| Thermal Sensor Type |
Uncooled VOx Infrared Detector, 8–14μm |
| Thermal Resolution |
640×512@12μm, NETD 18mK |
| Digital Sensor Type |
CMOS |
| Digital Resolution |
1920×1080@2.9μm |
| Frame Rate |
50Hz |
| Objective Lens (Thermal) |
50mm, F1.0 |
| Objective Lens (Digital) |
35mm, F4.0 |
| Magnification (Thermal) |
3.7x–29.6x |
| Magnification (Digital) |
3.7x–29.6x |
| Field of View (Thermal) |
8.8° × 7.0° |
| Field of View (Digital) |
6.4° × 5.1° |
| FOV @ 100m (Thermal) |
15m × 12m |
| FOV @ 100m (Digital) |
11m × 9m |
| Detection Range (Thermal) |
2,600m (2,800yd) |
| Detection Range (Digital) |
500m (550yd) |
| Focus |
Manual |
| Display |
1.03" AMOLED, 2560×2560 |
| Eye Relief |
60mm |
| Diopter |
-5 to +5 |
| Laser Rangefinder |
Up to 1,500m |
| Connectivity |
Wi-Fi 2.4G/5G, Bluetooth |
| Interface |
USB-C (Charge/USB2.0) |
| Tube Diameter |
Standard 30mm |
| Recording |
Photo/Video with audio, recoil-activated capture |
| Internal Storage |
256GB |
| Battery Type |
18650 ×2 (built-in) + 18650 ×1 (external) |
| Operating Time |
Up to 14 hours |
| Operating Temperature |
-20°C to 50°C |
| Shock Resistance |
6,000J / 1200G |
| Ingress Protection |
IP68 |
| Weight |
1,013g |
| Dimensions |
457mm × 90mm × 84mm |
