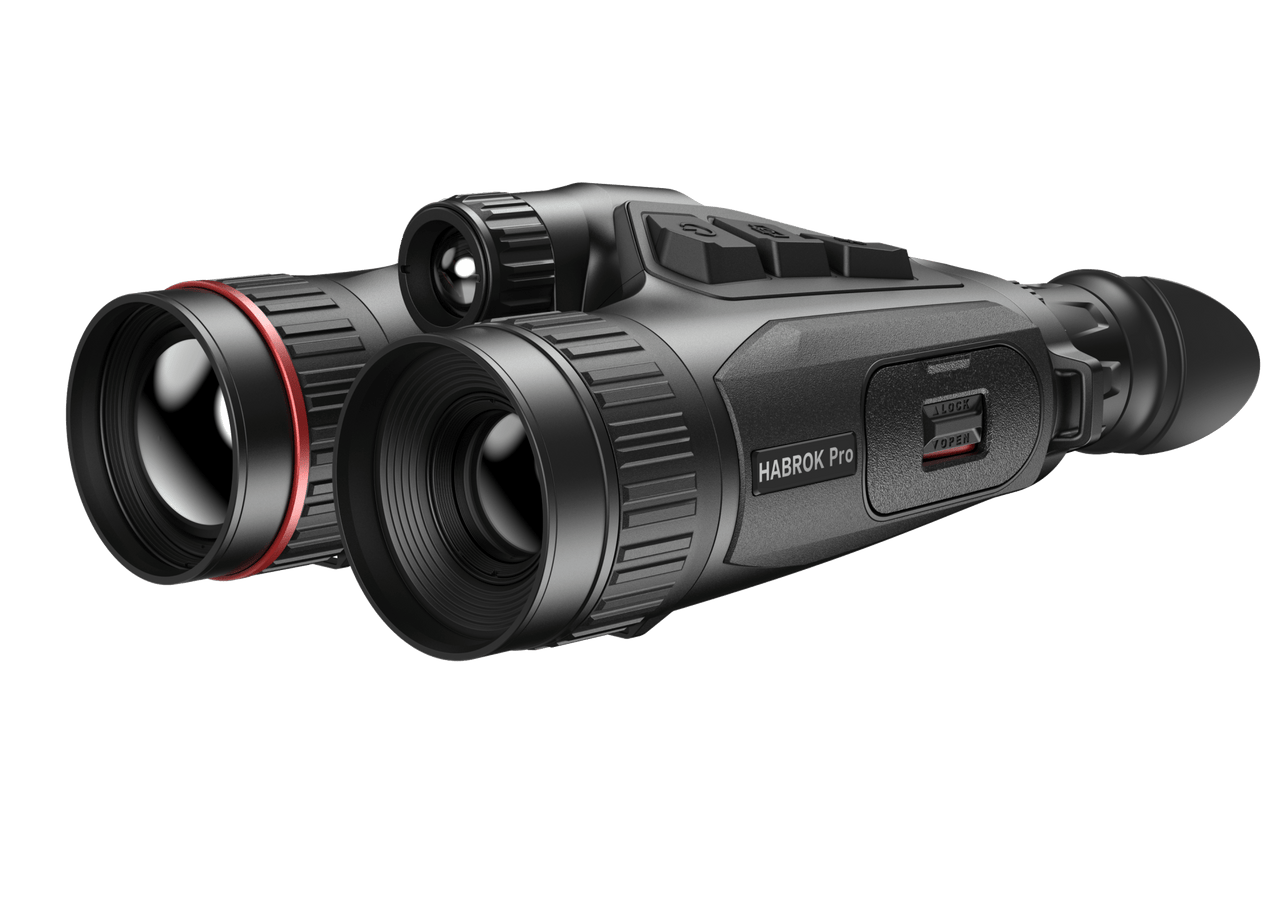

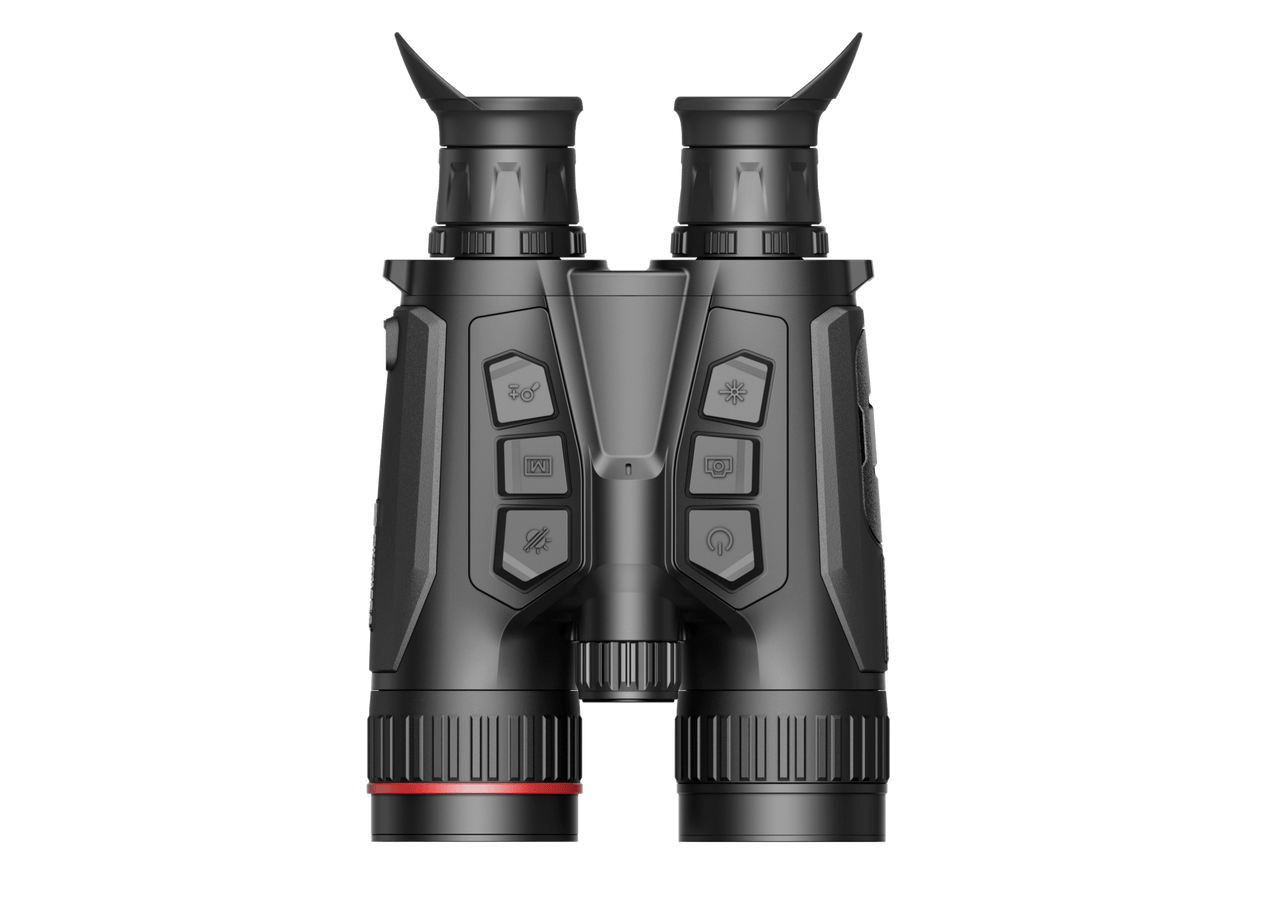

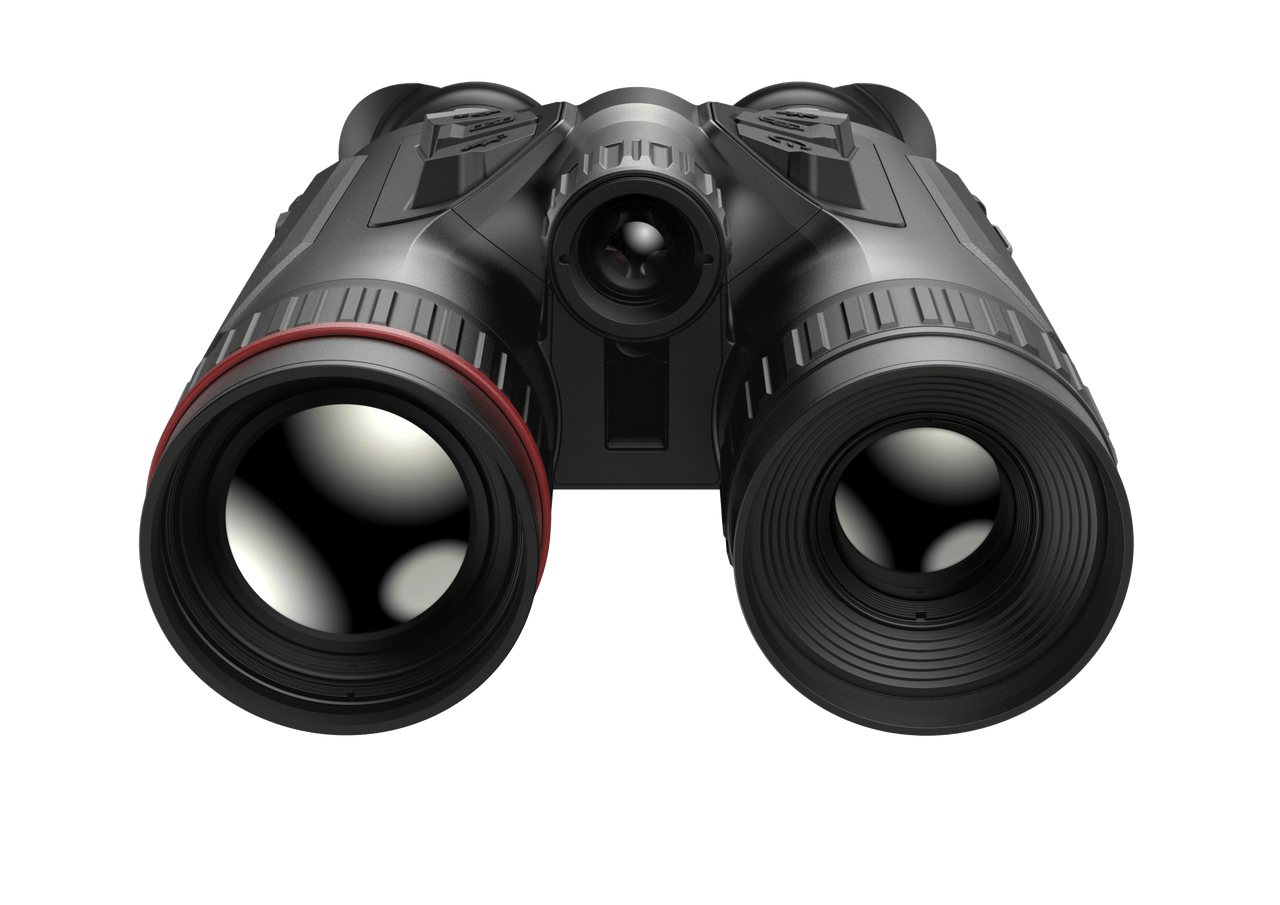

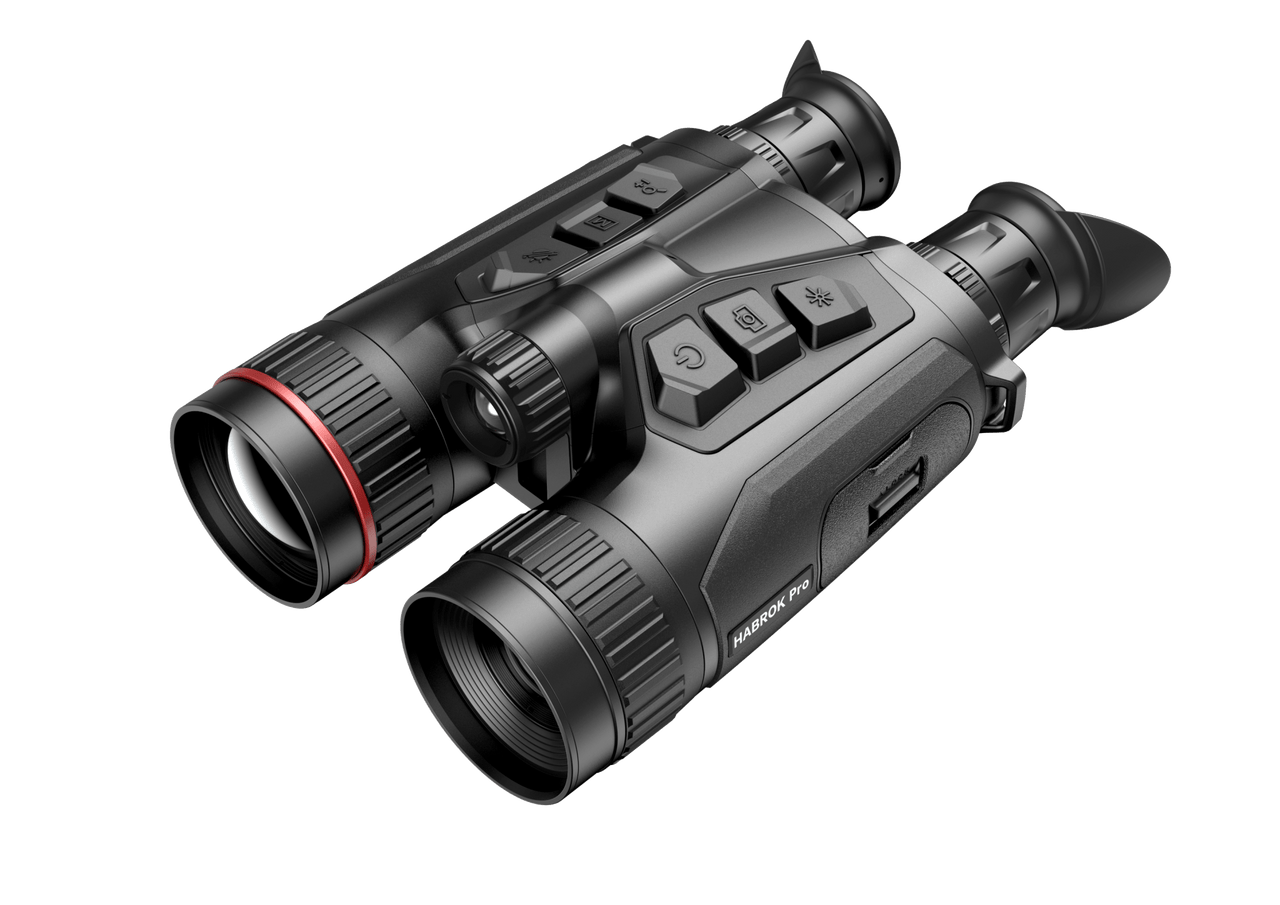

HIKMICRO Habrok Pro HQ50L(N) Multi-Spectrum Binocular
The HIKMICRO Habrok Pro HQ50L(N) is a multi-spectrum binocular that puts a 640 × 512 thermal channel, a 4K digital day/night camera and a laser rangefinder into one handheld unit. It suits hunters and pest controllers working paddocks and timber country after dark, along with graziers, search and rescue crews and boaties who need to identify a target before deciding what to do about it. Everything runs through the one eyepiece, so you switch between thermal detection and full-colour daylight or low-light viewing without swapping devices.
High-Resolution Thermal Imaging:
the thermal channel runs a 640 × 512 detector at 50Hz with a 12 μm pixel pitch and NETD of less than 15mK, paired with a 50mm F1.0 lens
, giving
a rated detection range of 2,600 m
. In the field this means you pick out a pig or fox by its heat signature well before you can make it out with the naked eye, and the fine NETD keeps detail visible on cool, damp mornings when temperature contrast is at its worst.
4K Day and Night Optical Channel: alongside the thermal sensor sits
a 4K UHD 3840×2160 CMOS optical camera with a 60mm F2.2 lens, producing vivid, high-resolution visuals with smooth 5.5–22x zoom for flexible target identification
. Once you have found a target with thermal, you flick to this channel to confirm species, count animals or read a tag number in full colour by day or in monochrome low-light mode after dark.
Precise Ranging and Adjustable Illumination:
the built-in laser rangefinder is a Class 1 unit at 905nm with a maximum measuring range of 1,000 m, a minimum range of 10 m and measurement accuracy of ±1 m
. For nights when you want an IR-assisted image rather than pure thermal, the emitter is replaceable between
850 nm or 940 nm infrared laser, offering a night vision range of 400 or 350 metres, respectively
, so you can trade a longer range for a less visible beam depending on the job.
All-Day Power and On-Board Storage: the removable battery pack is rated at
≥7 h (-20°C, with hotspot off, LRF and Zoom Pro on)
, and charges or runs directly from
Type-C Power Supply 5V DC, 2A
, with support for an external power bank on longer stints. Photos and video sit on
Built-in EMMC (64 GB)
storage, and the unit adds
Hotspot, Hot Track, Digital Magnetic Compass, GPS, Local Album
features, all viewable and shareable through the HIKMICRO Sight app over Wi-Fi.
Built to Handle the Bush: the housing carries
General Protection Level IP67
and a working temperature range of
-30℃ to +55℃
, so dust, rain and cold mornings on the ute tray are not a concern. At
975 g with battery pack
and with an
Interpupillary Adjustment Range 60 mm to 74 mm
, it sits comfortably around the neck on the supplied harness for a full night's spotlighting.
What's Included
- HIKMICRO Habrok Pro HQ50L(N) Multi-Spectrum Binocular
- Replaceable rechargeable Li-ion battery packs (x2)
- USB Type-C charging cable
- Binocular carrying harness
- Lens cleaning cloth
- Quick start guide
| Specification |
Details |
| Model |
HIKMICRO Habrok Pro HQ50L(N) |
| Thermal Sensor Type |
VOx Uncooled Focal Plane Array |
| Thermal Resolution |
640 × 512 |
| Pixel Pitch |
12 μm |
| NETD |
<15mK (@25°C, F#=1.0) |
| Thermal Lens |
50 mm, F1.0 |
| Frame Rate |
50 Hz |
| Response Waveband |
8 μm to 14 μm |
| Thermal Detection Range |
2,600 m |
| Focus Mode |
Manual focus ring |
| Optical Image Sensor |
1/1.8" Progressive Scan CMOS |
| Optical Resolution |
3840 × 2160 (4K UHD) |
| Optical Lens |
60 mm, F2.2 |
| Optical Magnification |
5.5x – 22x (4x digital zoom) |
| Optical Field of View |
7.3° × 4.1° (12.6 m × 7.2 m @ 100 m) |
| Display |
0.49" OLED, 1920 × 1080 |
| Laser Rangefinder Wavelength |
905 nm, Class 1 |
| Max Measuring Range |
1,000 m |
| Measurement Accuracy |
±1 m |
| Min Measuring Range |
10 m |
| IR Illuminator |
Replaceable 850 nm (400 m) or 940 nm (350 m) |
| Internal Storage |
64 GB (eMMC) |
| Connectivity |
Wi-Fi, USB-C, HIKMICRO Sight App |
| Onboard Sensors |
GPS, digital magnetic compass |
| Battery Type |
Replaceable, rechargeable Li-ion pack |
| Battery Life |
≥7 h (-20°C, hotspot off, LRF & Zoom Pro on) |
| Charging |
USB-C, 5V DC / 2A |
| Protection Rating |
IP67 |
| Working Temperature |
-30°C to +55°C |
| Interpupillary Adjustment |
60 mm – 74 mm |
| Mounting Thread |
1/4"-20 UNC |
| Dimensions |
142.9 × 79.7 × 230.5 mm |
| Weight |
975 g (with battery pack) |
