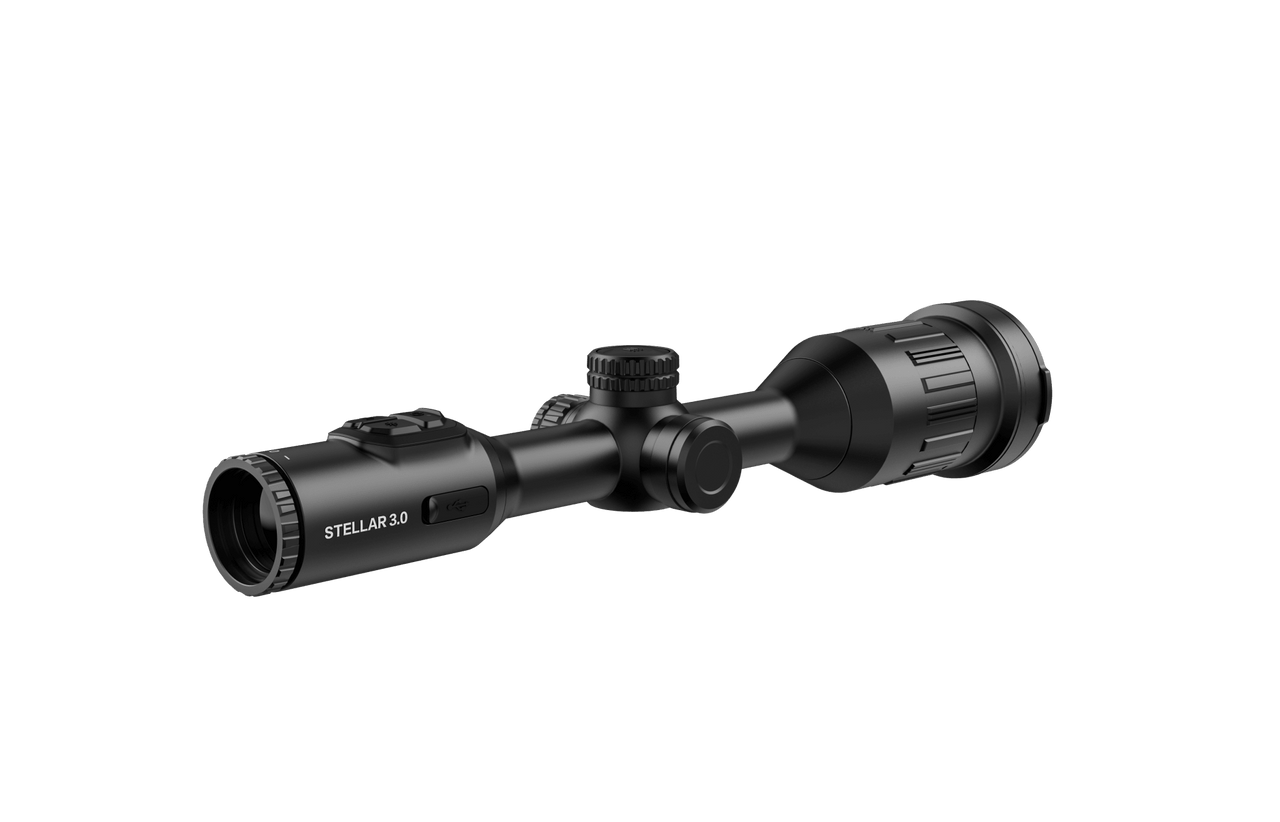

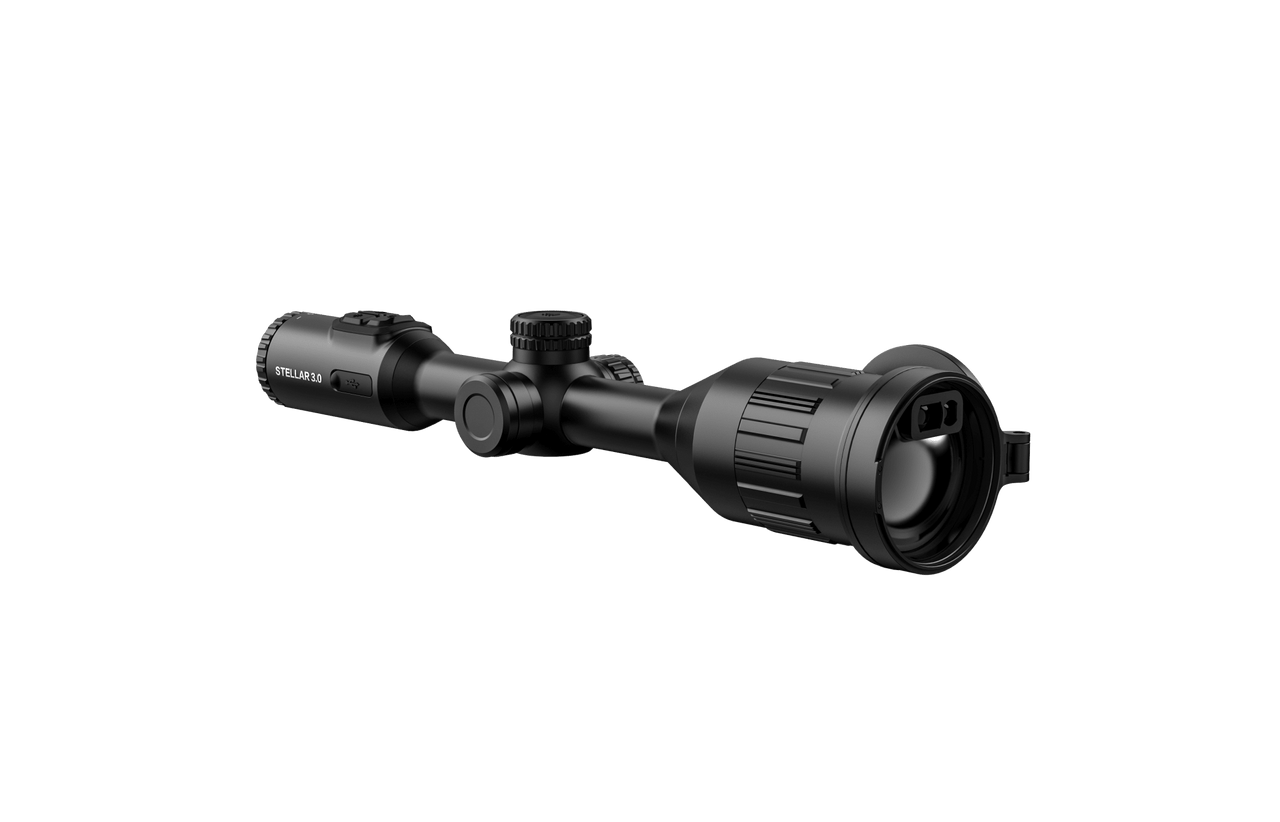

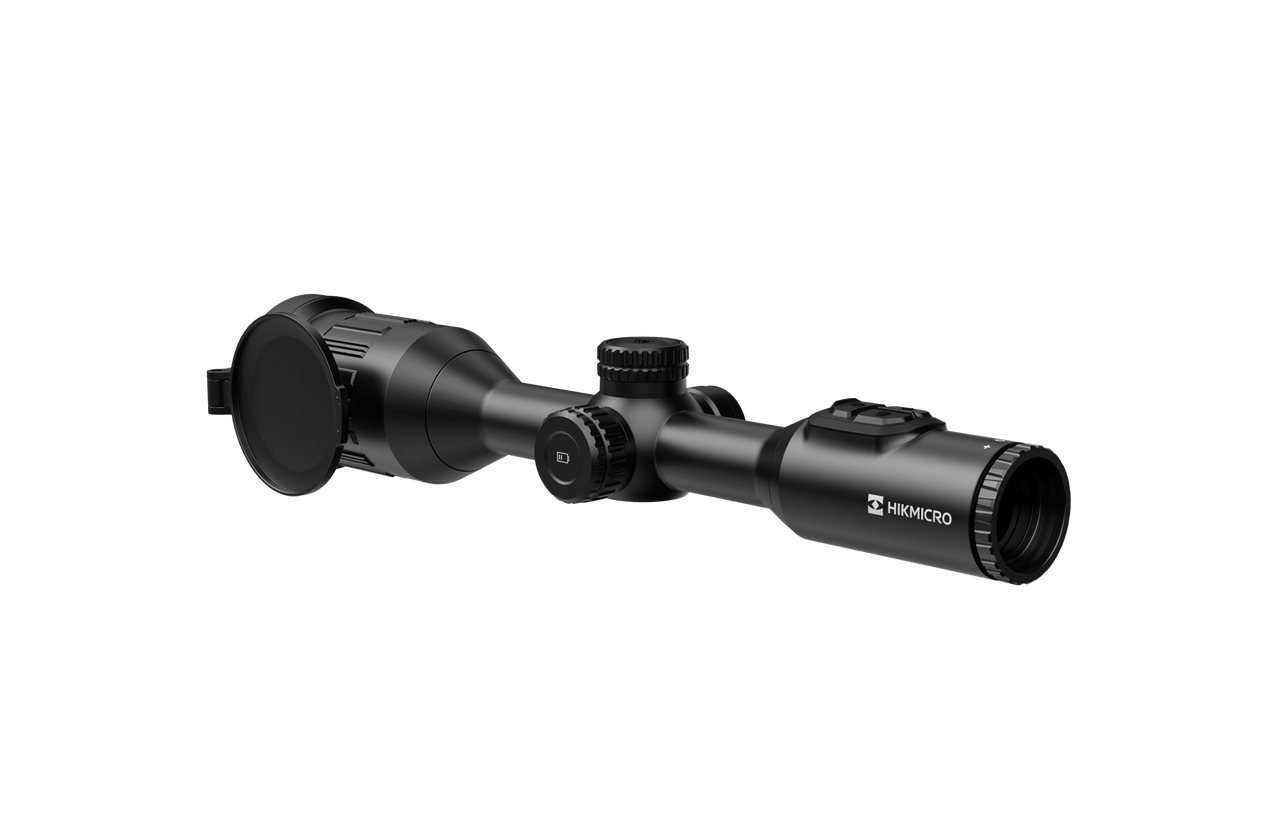

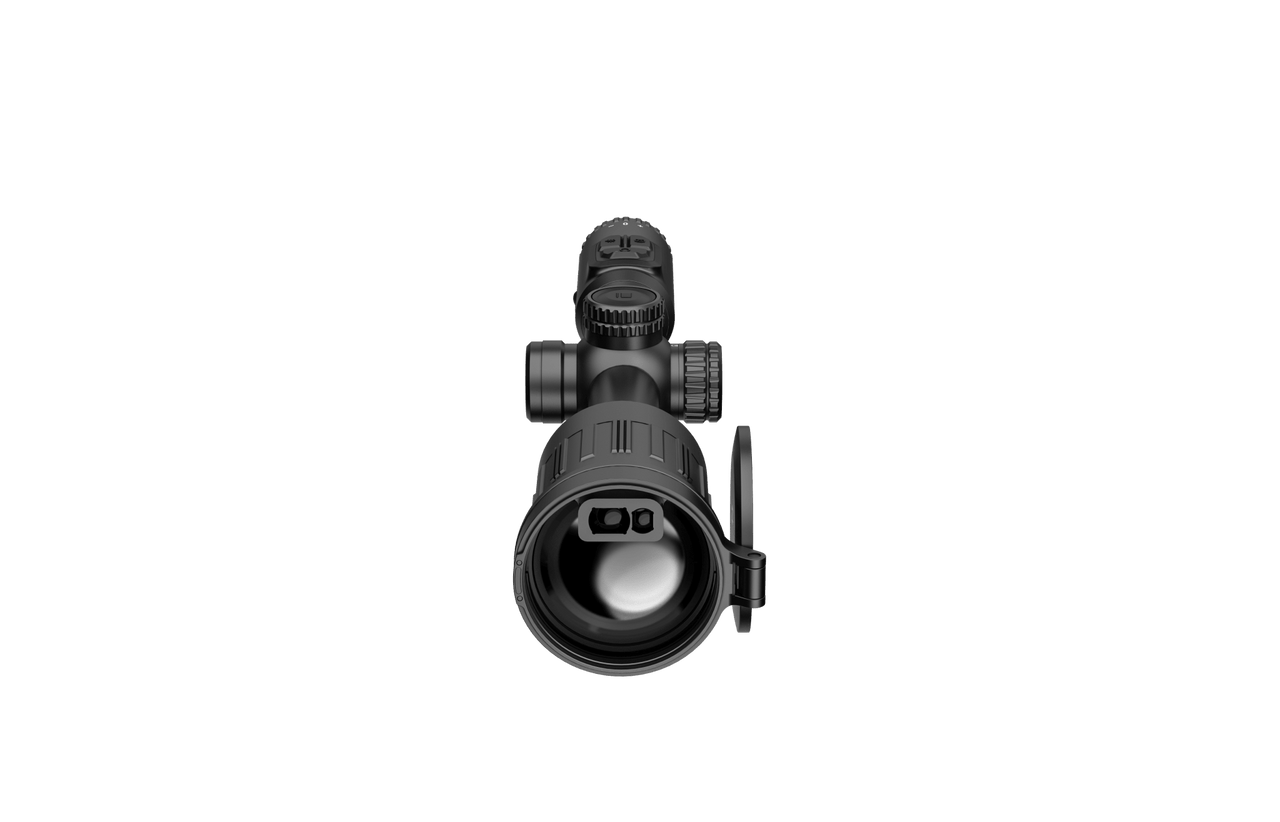

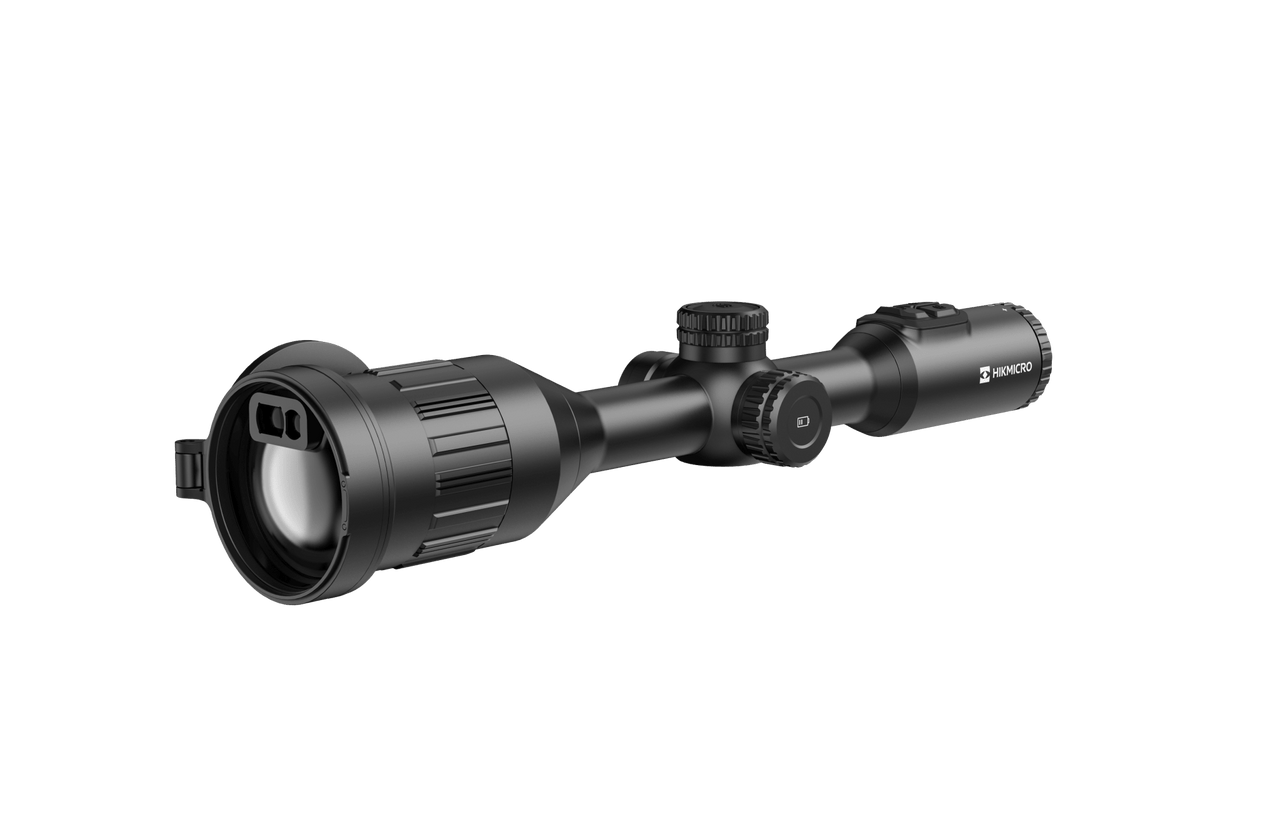

HIKMICRO STELLAR SX60L 3.0 Thermal Scope
The HIKMICRO STELLAR SX60L 3.0 combines an ultra-high-resolution thermal detector, integrated laser rangefinder and ballistic calculation in a traditional 30mm tube-style thermal scope.
Ultra-HD Thermal Imaging: The 1280 × 1024 @ 12μm thermal detector provides detailed thermal imaging with a NETD sensitivity of less than 18mK. Combined with a 60mm F1.0 objective lens and Image Pro 3.0 processing, the SX60L 3.0 delivers a detection range of up to 3,100 metres.
Wide Field of View: The 14.6° × 11.7° field of view covers an area measuring 25.6 × 20.5 metres at 100 metres. Magnification ranges from 2.5× to 28.5×, with continuous digital zoom available in 1× increments.
Large OLED Display: A 1.03-inch OLED display with 2560 × 2560 resolution provides a large, detailed viewing area for observation and aiming.
Integrated 1000m Laser Rangefinder: The lens-integrated Class 1 laser rangefinder measures distances from 10 to 1,000 metres with accuracy of ±1 metre. Built-in ballistic calculation includes inclination-angle compensation and displays a suggested point of impact.
Recording and Storage: The SX60L 3.0 supports onboard video recording, audio recording, image capture and recoil-activated recording. Files are stored on the built-in 64GB EMMC storage.
Extended Battery System: Two internal rechargeable lithium batteries and one replaceable rechargeable 18650 battery provide up to nine hours of continuous operation at 25°C with the laser rangefinder enabled. USB-C charging and QC3.0 fast charging are supported.
Built for Field Use: The aluminium-alloy housing is IP67 rated and withstands recoil up to 1000g for 0.4ms. The scope fits standard 30mm mounting rings and is rated for operation from -30°C to 55°C.
What’s Included
| Specification |
Details |
| Model |
HIKMICRO STELLAR SX60L 3.0 |
| Thermal detector |
VOx uncooled focal plane array |
| Thermal resolution |
1280 × 1024 |
| Pixel pitch |
12μm |
| Spectral range |
8 to 14μm |
| NETD |
Less than 18mK at 25°C, F1.0 |
| Frame rate |
25Hz |
| Objective lens |
60mm, F1.0 |
| Detection range |
Up to 3,100m |
| Minimum focusing distance |
6m |
| Focus |
Manual focus ring |
| Field of view |
14.6° × 11.7° |
| Field of view at 100m |
25.6 × 20.5m |
| Magnification |
2.5× to 28.5× |
| Digital zoom |
Continuous zoom in 1× steps |
| Display |
1.03-inch OLED |
| Display resolution |
2560 × 2560 |
| Colour palettes |
Black Hot, White Hot, Red Hot, Fusion, Red Monochrome and Green Monochrome |
| Eye relief |
45mm |
| Exit pupil |
6mm |
| Diopter adjustment |
-4D to +4D |
| Video recording |
Onboard recording |
| Audio recording |
Yes |
| Image capture |
Yes |
| Recoil-activated recording |
Yes |
| Internal storage |
64GB EMMC |
| Picture-in-picture |
Yes |
| Wi-Fi hotspot |
Yes |
| Hot Track |
Yes |
| Zeroing profiles |
Five |
| Freeze zeroing |
Yes |
| Ballistic calculation |
Yes |
| Laser rangefinder |
Integrated into the lens |
| LRF measuring range |
10 to 1,000m |
| LRF accuracy |
±1m |
| Laser wavelength |
905nm |
| Laser safety class |
Class 1 |
| Battery system |
Two internal rechargeable batteries plus one replaceable 18650 battery |
| Operating time |
Up to nine hours at 25°C with the LRF enabled |
| Charging |
USB-C, DC 5V/2A, QC3.0 supported |
| Mounting diameter |
Standard 30mm |
| Maximum recoil |
1000g for 0.4ms |
| Weather protection |
IP67 |
| Operating temperature |
-30°C to 55°C |
| Dimensions |
452.6 × 94.3 × 78.9mm |
| Weight |
1000g without the external battery |
| Centre height |
41mm |
